Protocol Source Code Libraries



We provides protocol source code libraries and implementation services for standard based protocols in partnership with our partners.

The Protocol Source Code Library can be used to facilitate customer protocol implementation on Slave (RTU, IED) or Master (SCADA, Data Concentrator, Front-End processor) devices. The Protocol is packaged as a set of ANSI standard "C" routines which can be incorporated onto any processor platform with an ANSI "C" compiler and corresponding run-time support.


Providing:DLL and C/C++ source code

----------------------------------------------------------

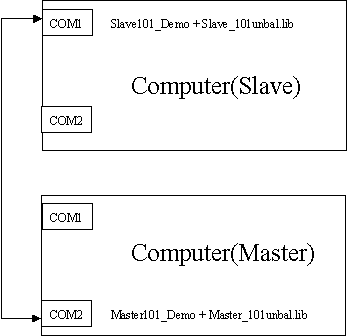

IEC60870-5-101 104 Demo   Free Download

A few data objects are configured to show the software features in this Demo. If more data objects are needed to transmit, user can easily select them on the configuration option.

Implementation  for  IEC60870-5-101

l         Both Slave Slave_101unbal.libsoftware kit and  Master  (Master_101unbal.lib) software kit feature are detailed as below.

ü         Operating system supported : Windows98, NT4.0, ME, 2000, XP.

ü         All data objects and  request-response procedure of IEC60870-5-101 are implemented except for fife transmission.

ü         All data in realtime database are monitored to be encoded many different frames by the different COT.

ü         The software kit is easy to be embedded to substation or power t&d scada .

ü         The software kit is compatible to IEC 60870-5

ü         With the software kit, many scada system can be easily inter-operation.

ü         User are quickly grasp the kit refering to the DEMO



Copy  XXXXX.dll to the local directory

Both include and lib directory of the software kit must be added into the VC 6.0 IDE -->TOOLS -->Options--> include files  and lib files separately.

Network configuration

    þ point to point                        þ multiple-point party line

    þ multiple point-to-point                þ multiple-point star

Application layer



Common address of ASDU



         þ   One octet              þ   Two octets







    Information object address

     þ    One octet                   structured

     þ    Two octets              þ    unstructured

     þ    Three octets





Cause of transmission



      þ   One octet              þ    Two octets (with originator address)

                                    Originator addressis set tozero if not used









Selection of standard ASDU







<1> M_SP_NA_1

þ



<2> M_SP_TA_1

þ



<3> M_DP_NA_1

þ



<4> M_DP_TA_1

þ



<5> M_ST_NA_1

þ



<6> M_ST_TA_1

þ



<7> M_BO_NA_1

þ



<8> M_BO_TA_1

þ



<9> M_ME_NA_1

þ



<10> M_ME_TA_1

þ



<11> M_ME_NB_1

þ



<12> M_ME_TB_1

þ



<13> M_ME_NC_1

þ



<14> M_ME_TC_1

þ



<15> M_IT_NA_1





<16> M_IT_TA_1

þ



<17> M_EP_TA_1

þ



<18> M_EP_TB_1

þ



<19> M_EP_TC_1

þ



<20> M_PS_NA_1

þ



<21> M_ME_ND_1

þ



<30> M_SP_TB_1

þ



<31> M_DP_TB_1

þ



<32> M_ST_TB_1

þ



<33> M_BO_TB_1



þ



<34> M_ME_TD_1

þ



<35> M_ME_TE_1

þ



<36> M_ME_TF_1

þ



<37> M_IT_TB_1

þ



<38> M_EP_TD_1

þ



<39> M_EP_TE_1

þ



<40> M_EP_TF_1

þ





<45> C_SC_NA_1



þ



<46> C_DC_NA_1

þ



<47> C_RC_NA_1

þ



<48> C_SE_NA_1

þ



<49> C_SE_NB_1

þ



<50> C_SE_NC_1

þ



<51> C_BO_NC_1

þ



<70> M_EI_NA_1

þ







<100> C_IC_NA_1





þ



<101> C_CI_NA_1

þ



<102> C_RD_NA_1

þ



<103> C_CS_NA_1

þ



<104> C_TS_NA_1

þ



<105> C_RP_NA_1

þ



<106> C_CD_NA_1

þ





<110> P_ME_NA_1



þ



<111> P_ME_NB_1

þ



<112> P_ME_NC_1

þ



<113> P_AC_NA_1
